Installation of Swedish standard adaptation

Scroll down to start reading the guide

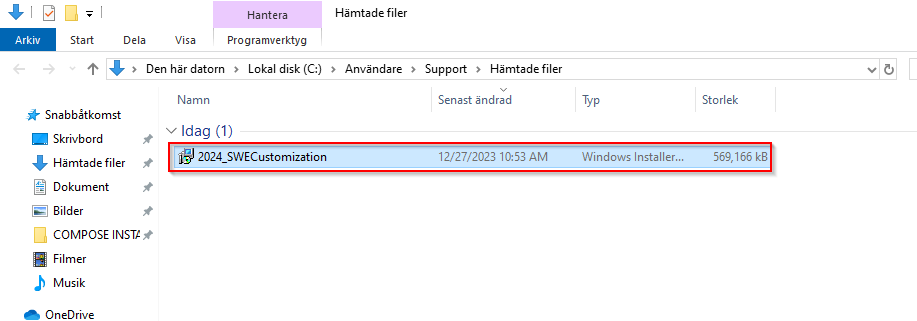

1. Double-click the installation file

Double-click the installation file

‍

2. Start the installation

Start the installation by clicking Next>

‍

Click here if you get an error message during the process

If you get an error message after the installation process is complete, it may be because you have a space in your Windows username. Try unpacking the installation file manually by following the steps below. We have written how to do this in both Windows 11 and Windows 10.

This is for Windows 11
If the path to the folder that handles "My Documents" and "Downloaded Files" etc. contains a space in your username (\Firstname_space_Password\) you need to manually unpack the installation file, otherwise an error message will appear during installation. To unzip, you can for example use WinRAR/WinZIP or preferably the easy to use and compact 7-zip: https://www.7-zip.org/
Then you can right-click on the file you downloaded and choose Show more options

Then select 7-zip followed by Unzip to "IronCAD_DCS2023SP1_SWE\

Then run the installation file itself in the new folder by right-clicking on the *.exe file and selecting Run as administrator:

This applies to Windows 10
If the path to the folder that handles "My Documents" and "Retrieved Files" etc. contains a space in your username (\Firstname_Space_Password\) you need to manually unzip the installation file, otherwise an error message will appear during installation. To unzip, you can use WinRAR/WinZIP or the easy to use and compact 7-zip: https://www.7-zip.org/

Then you can right-click on the file you downloaded and choose to unzip it into a new folder which will be created automatically.

Then run the installation file itself in the new folder by right-clicking on the *.exe file and selecting Run as administrator:

3. Enter path

Here you have the option to change the installation path. We recommend the default. Then click on Next>

‍

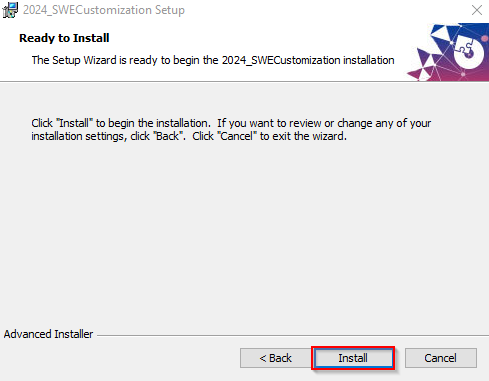

4. Start the installation

Now press Install>

‍

5. Installation process

Now the installation begins. You do not need to do anything at this stage.

‍

‍

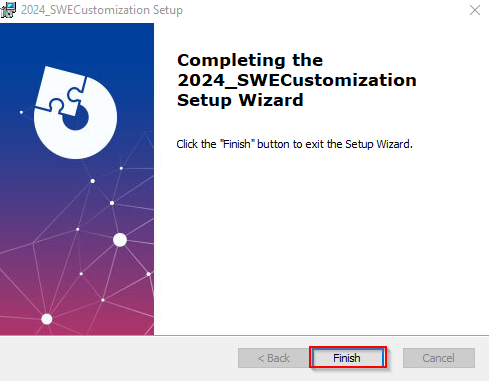

5. Installation is complete

The installation is now complete. Now press Finish>

‍

‍

6. Verify the installation

Now start IRONCAD and check that the Swedish customization has been installed is to check that the Starter directory is in Swedish:

We make many changes in connection with the Swedish adaptation (2D templates, drawing templates, recommended settings, etc.). Please contact support if there is anything you are missing.

‍
