Three graphics modes to switch between

Have you ever experienced the graphics performance in the 3D scene in ironcad working perfectly one day, only to suddenly degrade the next? Or perhaps issues arose immediately after a fresh installation of the software? In ironcad, you have the option to switch between three different 3D graphics APIs – OpenGL, OpenGL2, and DirectX11.

Trying to switch between these can sometimes help resolve graphics issues and optimize performance, depending on your hardware, drivers, and system settings.

‍

What is a 3D graphics API?

What drives 3D rendering in 3D CAD systems like ironcad is something known as a 3D graphics API (3D Graphics Application Programming Interface), sometimes also referred to simply as a "graphics engine". It is active code within the program that handles how images and 3D models are displayed on the screen by communicating with your graphics card, and ironcad offers several APIs to choose from. Depending on which API is used, performance and graphics quality can vary.

With ironcad, you primarily have these three APIs to choose from:

  • OpenGL (older graphics engine based on open source)
  • OpenGL2 (an updated and more advanced version of the above)
  • DirectX11 (Windows-specific and often better optimized for modern graphics cards)

‍

Why can graphics performance vary?

There are several reasons why graphics performance can be affected:

  1. Driver updates: Your graphics card may have received an automatic update that affects how it interacts with the active graphics engine. Some updates can improve performance, while others may cause issues.
  2. Windows updates: These can change how graphics management works, which may impact how OpenGL or DirectX functions on your computer.
  3. New installations or changed system settings: If you have installed new software or modified system settings, this can affect how ironcad interacts with the graphics card.

‍

Benefits of switching between different graphics APIs

Being able to switch between the three OpenGL, OpenGL2, and DirectX11 gives you the flexibility to choose the API that works best for your graphics card and system. Here are some benefits:

  • Troubleshooting graphics issues: If you notice that the graphics suddenly start underperforming, for example if 3D models lag or load slowly, switching the API can help. Some graphics cards may be better optimized for DirectX11, while others work best with OpenGL2.
  • Hardware adaptation: Some older graphics cards have better support for OpenGL or OpenGL2, whereas newer cards typically perform best with DirectX11. By changing the graphics engine, you can maximize performance depending on your graphics card.
  • Resolution after system updates: If Windows or your graphics card drivers update and you begin to experience graphical issues in ironcad, switching to a different graphics engine can quickly restore normal performance.

‍

How do I switch the graphics engine in IRONCAD?

Close all open files, then go to Options.

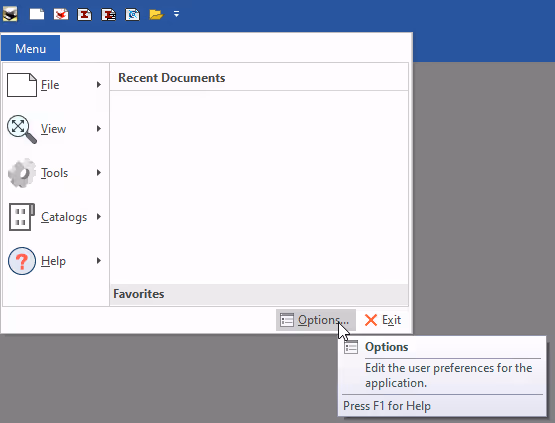

Tools Options Rendering

‍

Go to Rendering and change the setting.

Close ironcad, then restart it and open the file again.

‍

If you continue to experience issues, please do not hesitate to contact our Support for further assistance!
