DIN 934 or ISO 4032 specifies

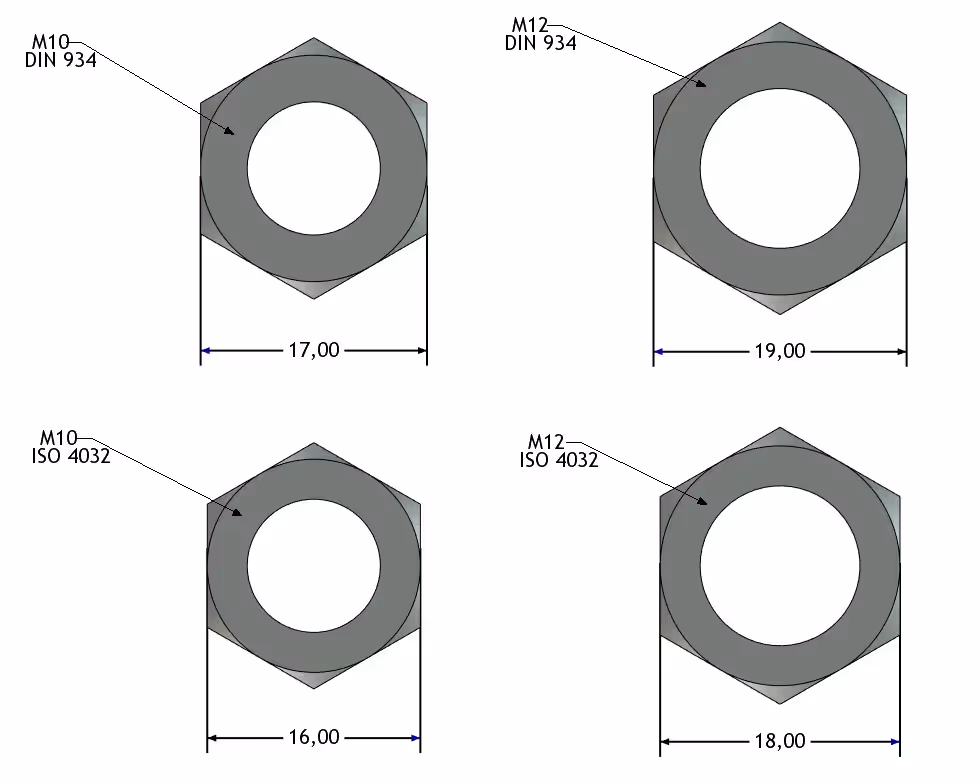

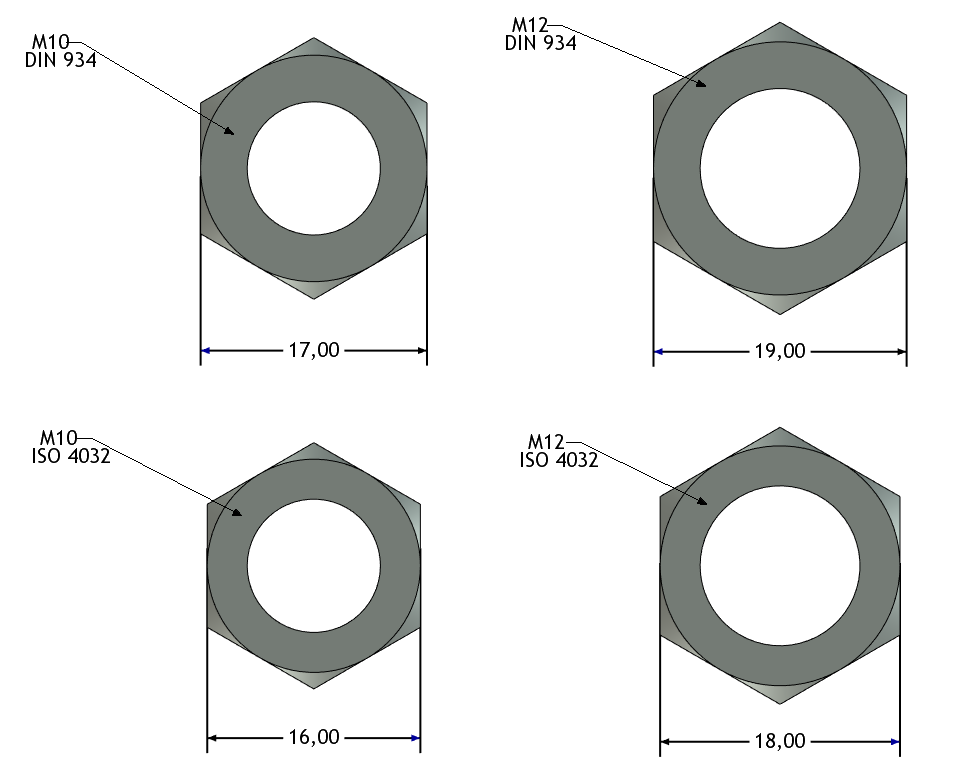

Not everyone may know that the wrench size for nuts in dimensions M10 and M12 differs depending on whether they follow the DIN 934 or ISO 4032 standard. In the image below, you can see that an M10 nut can be either 16 or 17 mm wide, while an M12 nut can be either 18 or 19 mm wide. This also applies to the less common M14 nuts, which can be either 21 or 22 mm wide.

When purchasing nuts from different suppliers, it is therefore important to choose the correct standard so that you have the right tool during assembly!

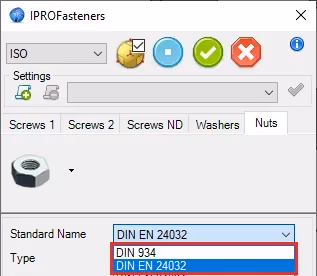

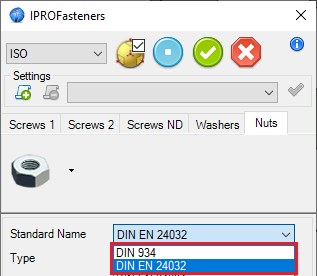

The Fasteners tool via the IronCAD Mechanical add-on has various tables to choose from, and you can easily add dimensions if there are special dimensions or potential missing standards. We have a separate blog post that discusses precisely the modification of existing tables.

Remember to choose the correct table depending on which nut standard you are going to order.

‍
