Include all linked files

If you are sending an assembly that contains externally linked files or if you are creating a new revision of an assembly, you can use this trick. When we at support ask for sample files for troubleshooting etc. it is easy to miss attaching all externally linked files. What happens when the file is opened without its external references is that this box appears:

‍

unable to find external linked file ironcad

‍

This means that the assembly will not be complete. To avoid this, you can do this (you can also do this if you want to make a completely new revision of your assembly, 2D drawings are not included). Start by making a new folder somewhere on your computer, for the sake of simplicity we will make a new folder on the desktop. Right-click and select New>Folder.

‍

create new folder

‍

Then open IRONCAD and open the main assembly. Go to Menu>File>Save As...

‍

save as ironcad

‍

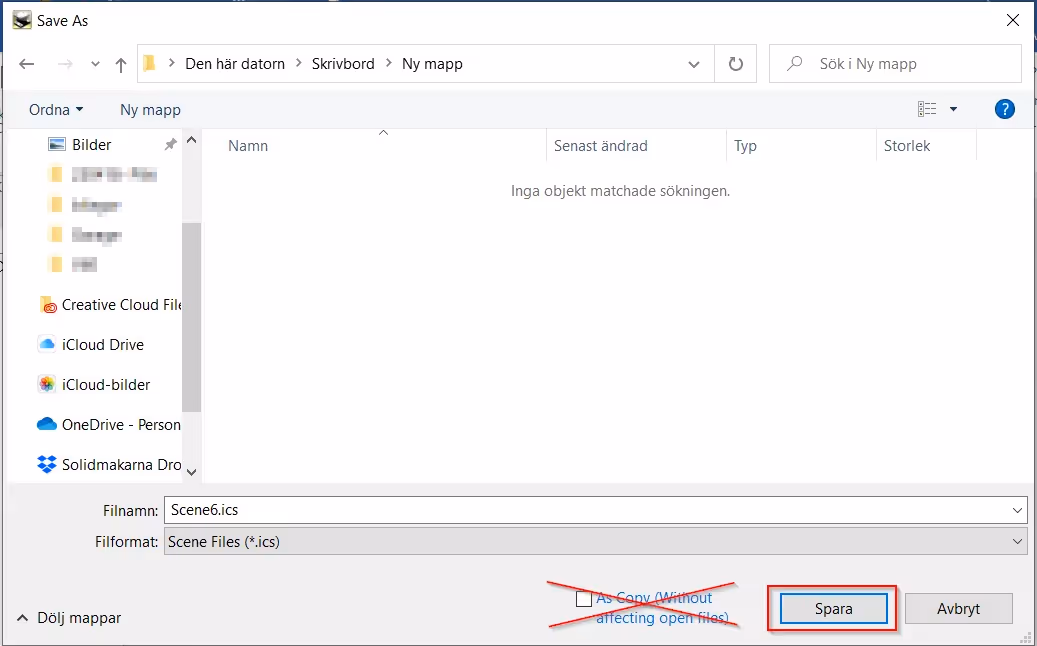

Navigate to the new folder and click Save...

‍

Save As IRONCAD

‍

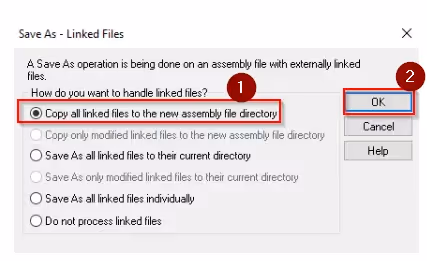

This dialog box will appear. Select Copy all linked files to the new assembly file directory... and then click Ok...
Tip: If you want to read more in-depth about the various options, you can
read this article.

Save As Linked Files IRONCAD

‍

What happens now is that IRONCAD collects all external links related to the assembly file(except 2D drawings) and places them in the new folder. All files in the new folder are a copy of a previous one, which means that these new files are NOT related to the old ones, it allows you to work in these files without affecting the other files, perfect when you need to make a new revision of a assembly. If you then want to send the assembly with all external links, right-click on the folder and select Send to>Compressed folder...

‍

Compress folder

‍

Now you can send the zipped folder. If the zipped folder is around 5-10 MB, it is usually fine to attach it directly to an email and send it, but there is always a risk that the email gets caught in spam filters when files are slightly larger. Therefore, we generally recommend using some type of cloud service to send the file, such as Google Drive, OneDrive, Dropbox, etc. A convenient service for sending files is also www.sprend.com, which is free for up to 2GB.
