trial versionHas a licenseIRONCAD DRAFT is a 2D CAD solution that bridges the gap between 2D and 3D.
IRONCAD is a complete & cost-effective 3D solution for design. With IRONCAD you can develop products much faster and easier. You can save tons of precious time. Let us show you how.
The picture shows a hydraulically driven weed brush designed in IRONCAD by Broddson AB
The trial version contains the same functionality as a "full" version.
Free support is included during the trial period. Completely free for 30 days.
See system recommendation.
The trial version contains the same functionality as a "full" version.
Free support is included during the trial period. Completely free for 30 days.
See computer specification.
The trial version contains the same functionality as a "full" version.
Free support is included during the trial period. Completely free for 30 days.
See computer specification.
Completely free of charge.
See computer specification.
The trial version contains the same functionality as a "hard" version.
Completely free for 90 days.
See system recommendation.
IRONCAD DRAFT is a 2D CAD solution that bridges the gap between 2D and 3D.
Phone:
E-mail:
Most 3D solutions on the market are optimized for documenting finished solutions. Drawing something that you already know how it should look. "Plan your design before you start, also think about how you want to change the model in the future" says the manual. As if you always knew what the end result would look like! This is exactly the opposite of how product development works in reality. This problem with traditional 3D CAD costs Swedish industry many millions every year.
Instead, designers want to test, change freely, get new ideas, meet customers' changing requirements and so on. IRONCAD revolutionizes 3D CAD by solving this need. This is how product development can be truly solved. Combine the freedom to change as you want but still have intelligent models with complete history. Flexibility combined with complete precision.
Cut tons of expensive time with IRONCAD and create better products by making the program work the way reality demands - adapt models freely without having to plan how.
Create complete robotic cells with IRONCAD - faster and easier than you think. Design new or use existing fixtures, grippers, fences, conveyors, electrical cabinets and robots in 3D using IRONCAD. Measure on 2D drawings when required. Let us describe how IRONCAD can help you streamline operations, reduce costs and increase productivity. The functions are included in IRONCAD and no additional module is needed.
The picture shows a robot cell constructed in IRONCAD by System 3R (GF Machining Solutions).
See examples
With IRONCAD's Sheet Metal features, you can create folded sheets in 3D and unfold them into a flat version. You can dimension both the folded and unfolded version of a 2D drawing and also export the unfolded version to DXF at the touch of a button for use in the laser cutter. Sheet Metal for 3D CAD has never been faster and easier!
The picture shows a dehumidifier designed in IRONCAD by Länna Svets & Mekaniska Verkstad AB.
See examples
With IRONCAD you can create different types of structures and equipment for the construction industry faster and easier. Whether you are designing a new solution or adapting an existing structure to your customer's needs, IRONCAD is the most suitable solution. You can save a lot of precious time with IRONCAD and design in a more free, efficient and flexible way.
The picture shows a flap bucket designed by YPV and a bucket designed by Drivex AB in IRONCAD.
See examples
Design hydraulics solutions in 3D CAD with IRONCAD. Fast, easy and flexible. Import purchased components such as motors and pumps. Create your own solutions like valve blocks, hydraulic tanks and frames. Unbeatably easy to design hydraulics in 3D with IRONCAD. It does not require an extra module but uses functions included in IRONCAD. Why not let your company benefit from IRONCAD too ?
The picture shows a hydraulic unit designed in IRONCAD by Industrihydraulik Sweden AB.
See examples
Using 3D CAD for layout makes it easier to optimise the use of premises. With IRONCAD you can quickly create layouts with 3D CAD and plan for production, for example. You can place and move all objects freely with full precision. Moreover, you can have 10,000s of parts in the same file. IRONCAD has powerful tools to simplify e.g. imported CNC machines. There is time and money to save for you!
The picture shows a robot cell constructed in IRONCAD by System 3R (GF Machining Solutions).
See examples
Create beams and entire frames in 3D quickly and easily. Choose beams from an extensive standard range (e.g. from Tibnor or BE Group) or create your own dimensions. You can also solve other typical needs such as steel stairs, railings and general construction. Measured 2D drawings depicting the 3D models can of course be created easily.
The picture shows a warehouse constructed in IRONCAD by Carlhag AB.
See examples
Create different types of corrugated packaging and cardboard interiors with IRONCAD - directly in 3D. It does not require an additional module but uses functions included in IRONCAD. This completely new method creates new opportunities to streamline an entire industry.
See examples
The TriBall is an amazing feature in IRONCAD. You can move, copy or modify anything in 3D. Freely, lightning fast and with full precision. Replaces the need for Plan. Drag & drop finished 3D shapes, parts or entire assemblies to/from catalogs. Or use a 2D sketch and extrude into 3D - choose what works best at any given moment. Pull handles and snap to other parts, even in other assemblies, to make precise changes in seconds.
IRONCAD solves the need to create different variants of a product incredibly efficiently. Drag & drop smart parts from catalogs. These are attached together magnetically and also resize automatically depending on where you place them. Dimensions of entire assemblys are adjusted in a flash by pulling handles - done!
With IRONCAD you use Parametric Design when appropriate and Free Design in the normal case. You choose freely between both methods and switch in the same batch. Here, complete and customized solutions can be created easily and quickly!
The file management in IRONCAD is a real time saver. You can design directly in the assembly in one and the same file, whether the design consists of 1 or 10,000 parts. Link parts to external files only if and when you want. You can focus on construction instead of administration. No more creating the part in a separate file and guessing if it fits in the assembly. You can create assemblies with a mouse click in the 3D scene. True "Top - Down design"! Of course, you can also link existing files "Bottom - Up". Here, many people think that IRONCAD works so much more smoothly than in traditional solutions such as SolidWorks, Creo and Inventor.
With IRONCAD you can create geometries that cannot be done with old technology where the CAD solution only uses a solid kernel, often ACIS or Parasolid. On the other hand, you can benefit from this when modeling details in IRONCAD as shown in the movie. The different solid cores have their limitations and advantages. You can specify which core should be the default. But you can also quickly change solid kernel with the keyboard shortcut "Ctrl+K" on a Part or entire compilation afterwards!
Another great advantage is when importing 3D files from different formats such as STEP. Imported geometry is created in the solid core you have chosen as default. Sometimes the conversion can be less good and then it is really great advantage to be able to import to the other solid core as an alternative.
IC Mechanical is a Toolbox that solves your need for various standard components in 3D such as screws, nuts, washers, threads, steel beams, aluminum profiles, lock rings, o-rings, packing boxes, sprockets, boom joints, keyways and more. Also included are really smart features such as steel stairs, railings, piping, extended BOM tools, creating unique QR codes for 2D drawings, lightning fast 2D DWG/DXF export directly from 3D and more.
Solidmakarna are involved in the development of IC Mechanical and therefore many standard components follow the Swedish standard. We also bring in new requests quickly.
IronCAD Web Viewer is a great tool for showing your 3D CAD models to others. Since it only requires a web browser, this tool is great for explaining what you mean, presentations, sales and collaboration. No installation of any viewer or software is needed to view the files. You can even show your products in 3D on your website like our example here.
INOVATE is a separate part of the complete solution IRONCAD
DRAFT is a separate part of the complete solution IRONCAD
COMPOSE is a separate part of the complete solution IRONCAD
IRONCAD DRAFT can open 3D files created in IRONCAD or import 3D geometries in various neutral formats. These 3D models can then be positioned, animated, rendered with the integrated tools of DRAFT. Use IRONCAD DRAFT to manage 3D models created by customers and colleagues. The 3D files can be easily mapped onto 2D drawing with a familiar user interface and powerful tools for detail drawing and dimensioning in 2D. Of course, the user can create 2D drawing directly without imaging 3D models.
Many people also use DRAFT to manage their own or customers' 2D drawings in a cost-effective way.
IC Mechanical is a Toolbox that solves your need for various standard 3D components such as screws, nuts, washers, threads, steel beams, aluminium profiles, locking rings, o-rings, packing boxes, sprockets, beam joints, wedge tracks and more.
Also included are some really smart features, such as steel stairs, railings, piping, extended bill of materials tools, creating unique QR codes for 2D drawings, lightning-fast 2D DWG/DXF export directly from 3D and more.
Solidmakarna are involved in the development of IC Mechanical and therefore many standard components follow Swedish standards. We also incorporate new requests quickly.
The basic training in IRONCAD is a total of 4 days, usually split (not 4 days in a row) to facilitate learning.
Read more
Further training in IRONCAD is customized and varied. We organize the training together with you according to your wishes. Contact us to create a training for your specific needs.
Read more
Take advantage of this free training material that does not require registration. Lots of free videos in English or Swedish.
Read moreIronCAD DCS (Design Collaboration Suite) is a family of 3D and 2D CAD applications designed around the core IRONCAD.
Some of the add-ons are already installed out of the box when you download and install our customised installation file. Below you will find all the add-ons for IronCAD DCS.
With over 100 smart extra features to maximise your productivity!
TRANSLATOR is a powerful extension that further extends the possibilities for collaboration by supporting direct opening of file formats from other CAD solutions.
Architectural Translator is a powerful add-on that further extends the possibilities for collaboration in architecture and layout by supporting direct import and export of IFC and RFA.
KeyShot is a powerful add-on that helps you create stylish, photo-realistic product images and animations in real time. KeyShot is designed for the modern designer.
An advanced & easy to use FEM software fully integrated into IRONCAD. The user can quickly and easily perform calculations of designs.
IronCAD Synergy is a cloud-based collaboration platform for storing, configuring, sharing, managing and viewing design data with team members and customers.
Design circuit boards in electrical CAD and imported as 3D model to IRONCAD. Electronics and mechanical designers can collaborate effectively in product development.
3D PDF Designer - Create parts lists or instructions that anyone can open, rotate in 3D and view in the free Adobe Reader.
Some of the add-ons are already installed out of the box when you download and install our customised installation file.
TRANSLATOR is a powerful extension that further extends the possibilities for collaboration by supporting direct opening of file formats from other CAD solutions.
Architectural Translator is a powerful add-on that further extends the possibilities for collaboration in architecture and layout by supporting direct import and export of IFC and RFA.
KeyShot is a powerful add-on that helps you create stylish, photo-realistic product images and animations in real time. KeyShot is designed for the modern designer.
IronCAD Synergy is a cloud-based collaboration platform for storing, configuring, sharing, managing and viewing design data with team members and customers.
DEVELOP3D Magazine software review
Apple uses its Metal graphics routine in newer MACs. Many programs do not work well with Metal (yet). Rhinoceros 7 may slow down as files get larger. Therefore, it is important to try Rhino 7 properly on your MAC before purchase if you are unsure.This will be resolved in future versions of Rhino. Download the Rhino 7 trial version here
Order Rhinoceros by filling out the form below or by calling us on 08-556 185 40
For the purchase of multiple licenses, please contact us for a current quote.
Baltic Yachts
This 218-foot ketch, named Hetairos, is the largest yacht Baltic has launched to date and in many ways she remains in a class of her own. A modern high-performance yacht that takes full advantage of Baltic's carbon fibre design and engineering expertise. Read more about Baltic Yachts, how IRONCAD solves their CAD needs and also about some of our other more than thousand clients.
Read moreDownload free trial version
The trial version contains the same functionality as a "full" version.
Free support is included during the trial period. Completely free for 30 days.
See system recommendation.

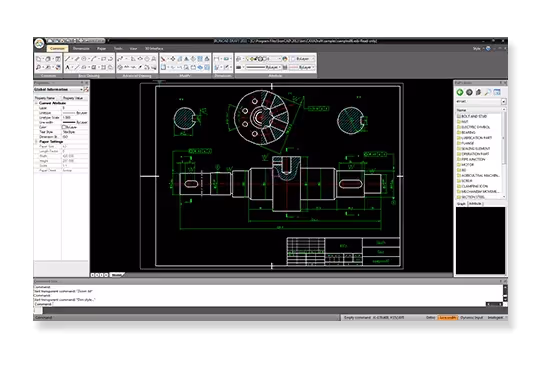

An additional powerful integrated 2D tool is included that solves the need to open, edit or create new DWG/DXF drawings.
.webp)
"Drag-and-drop" from ready-made catalogues of geometries. Or create your own catalogues, add common Features, Parts, assemblys - all with drag-and-drop!
Built-in tools create renderings at the touch of a button! Add your logo or different materials directly to the 3D model. See also KeyShot for further possibilities.
With built-in tools, animations are created by dragging and dropping finished movements into the 3D environment on Features, Parts or assemblys. View montage or explain feature.

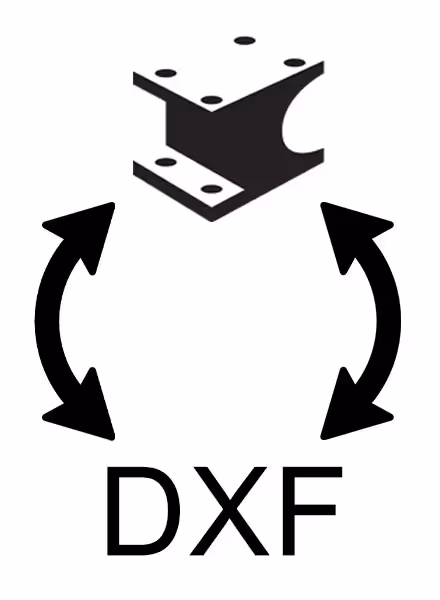

Create new or open existing 2D DWG/DXF drawings. Excellent import/export handling. Convert to 3D or conversely export 2D DXF file to laser cutter.
Download free version
COMPOSE is a completely free 3D and 2D viewer.
The only thing required is a registration of your e-mail address.
See computer specification.
