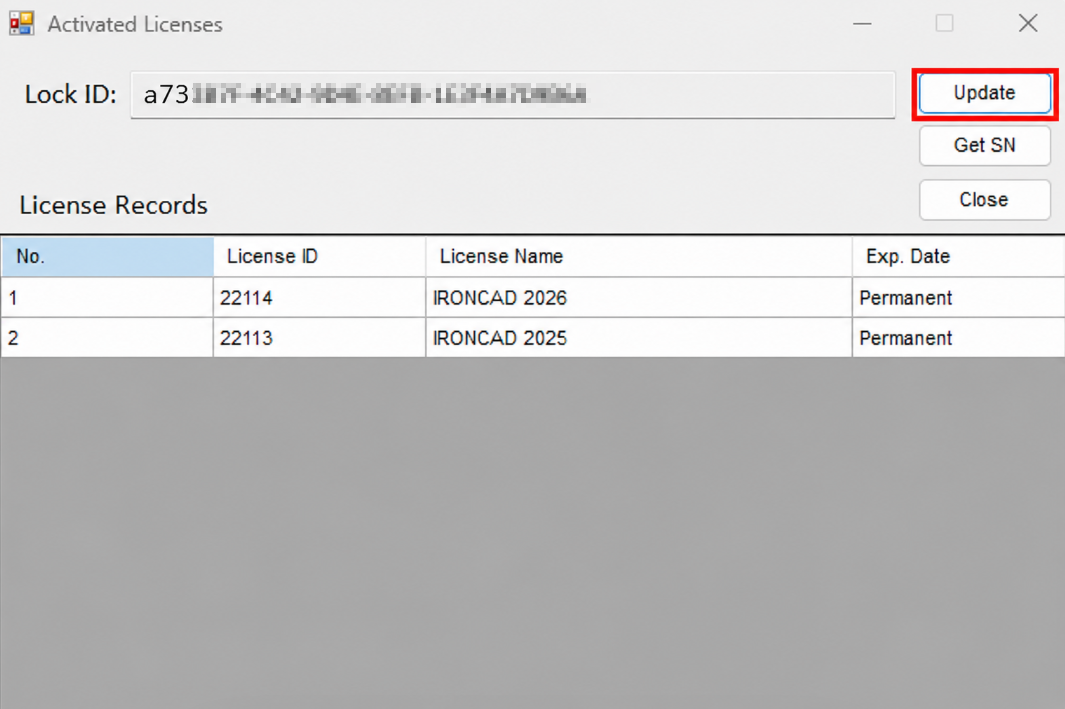

Update existing software license
Update existing license

Scroll down to start reading the guide

1. Launch the License Management Tool

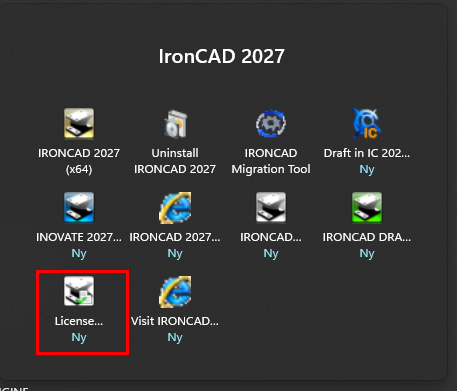

Go to the Windows Start menu and double-click License Management Tool in the IRONCAD 20XX (Current version) folder.

2. Licence registration

Here you select Activate a Software License. Then click Next>

Click here if you get an error message during the process

If you get an error message after the installation process is complete, it may be because you have a space in your Windows username. Try unpacking the installation file manually by following the steps below. We have written how to do this in both Windows 11 and Windows 10.

This is for Windows 11
If the path to the folder that handles "My Documents" and "Downloaded Files" etc. contains a space in your username (\Firstname_space_Password\) you need to manually unpack the installation file, otherwise an error message will appear during installation. To unzip, you can for example use WinRAR/WinZIP or preferably the easy to use and compact 7-zip: https://www.7-zip.org/
Then you can right-click on the file you downloaded and choose Show more options

Then select 7-zip followed by Unzip to "IronCAD_DCS2023SP1_SWE\

Then run the installation file itself in the new folder by right-clicking on the *.exe file and selecting Run as administrator:

This applies to Windows 10
If the path to the folder that handles "My Documents" and "Retrieved Files" etc. contains a space in your username (\Firstname_Space_Password\) you need to manually unzip the installation file, otherwise an error message will appear during installation. To unzip, you can use WinRAR/WinZIP or the easy to use and compact 7-zip: https://www.7-zip.org/

Then you can right-click on the file you downloaded and choose to unzip it into a new folder which will be created automatically.

Then run the installation file itself in the new folder by right-clicking on the *.exe file and selecting Run as administrator:

3. Fill in the details

Here you fill in the information from your license certificate. For the fastest activation, we recommend the Internet as the activation method. Then click on Next>

4. Check data

Check that you have entered your details correctly. Then click on Next>

‍

5. Finish

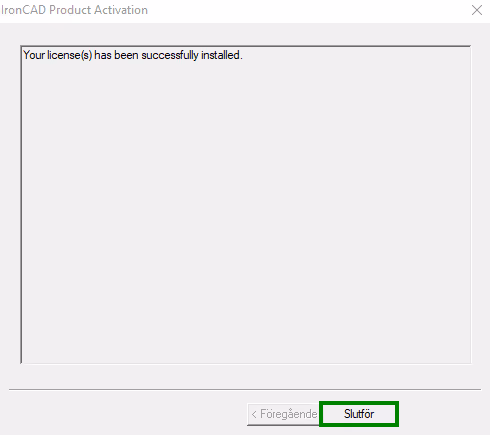

This image is displayed when the activation is complete. Now click on Finish >

‍

6. Overview of licences

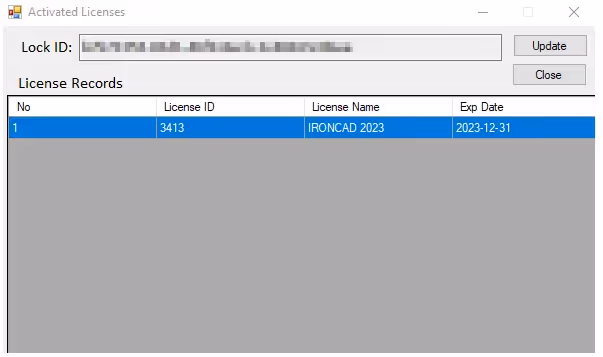

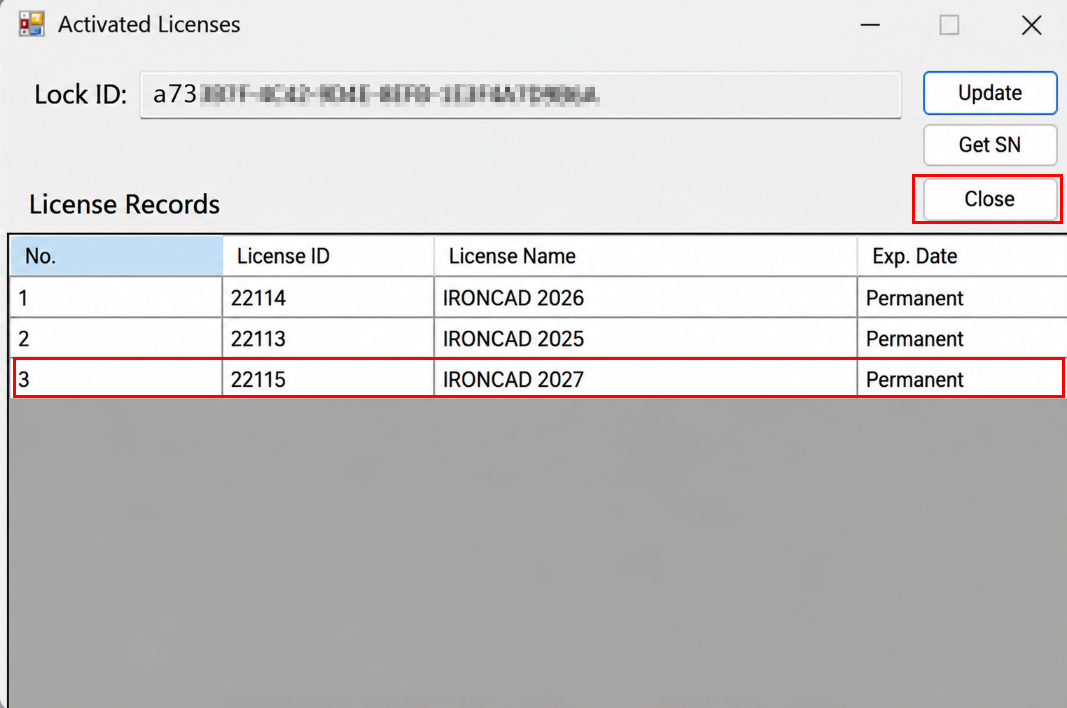

Here you can now see an overview of all activated licenses on your computer. License activation is now complete. Did you encounter any problems during activation? Please contact our support and we will help you.
